LiFePO4 Battery Cell
>
|
| Place of Origin | China |
| Brand Name | XUWEN |
| Certification | CE |
| Model Number | 38120 38120S 38120HP 8Ah 10Ah 3.2V Lifepo4 Battery Cell |

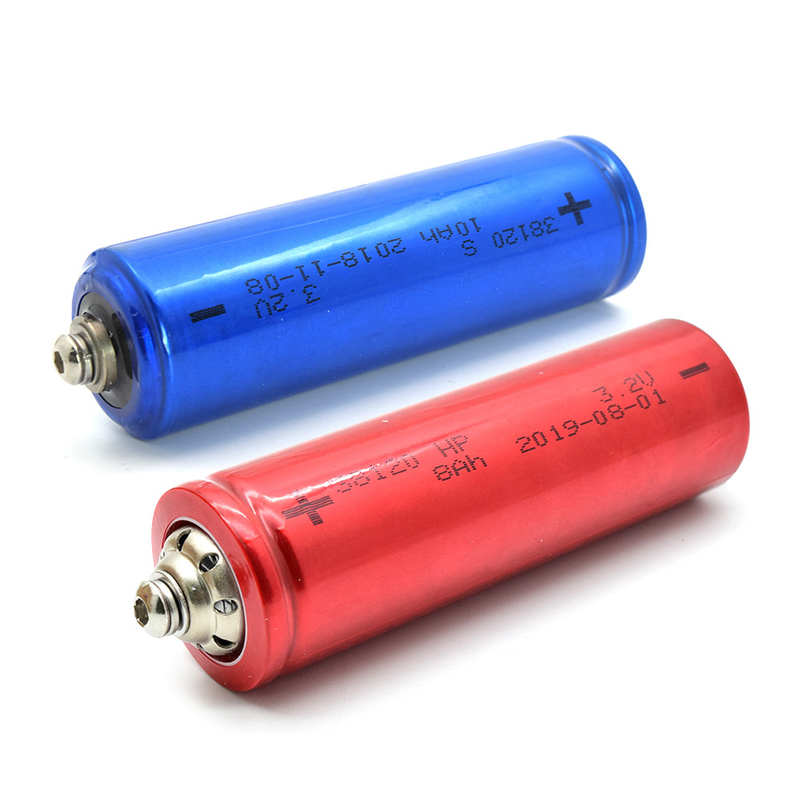

Lithium Li Ion Cell Headway 38120 38120S 38120HP 8Ah 10Ah 3.2V Lifepo4 Battery Cell
| Model | 38120HP |
| Nominal capacity | 8Ah(0.5c) |
| Nominal voltage | 3.2v |
| Internal resistance of battery | ≤3mΩ |
| Maximum charging current | 10C(80A) |
| Maximum charging voltage | 3.65±0.05V |
| Maximum discharge current (continuous) | 10C(80A) |
| Maximum discharge current (instantaneous pulse) | 25C(200v) |
| Discharge termination voltage | 2.0V |
| size | Φ38±1mm*H122±(H132±1mm) |
| weight | 330g |
| cycle life | >2000times |
| working temperature | -20~60℃ |
| Storage temperature | Within a month: -20~40℃ |
| Within 6 months: -20~35℃ | |
| Model | 38120S |
| Nominal capacity | 10Ah (0.5c) |
| Nominal voltage | 3.2V |
| Internal resistance of battery | ≤6mΩ |
| Maximum charging current | 2C (20A) |
| Maximum charging voltage | 3.65 + 0.05V |
| Maximum discharge current (continuous) | 3C (30A) |
| Maximum discharge current (instantaneous pulse) | 10C (100V) |
| Discharge termination voltage | 2.0V |
| size | Φ 38 ± 1mm * h122 ± (h132 ± 1mm) |
| weight | About 330g |
| cycle life | >2000 times |
| working temperature | -20~60℃ |
| Storage temperature | Within a month: -20~40℃ |
| Within 6 months: -20~35℃ |
FAQ
1,Q: What's the main product in XUWEN?
A: Rechargeable battery: Li-ion, Lipo battery and power battery pack.
2,Q: What is overcharge?
A: After charge, tested the batteries' initial state and capacity. Charge to 10.0V at 3C current, then charge to 0.01C at CV mode.
Observe changes in battery appearance.
3,Q: What is over discharge?
A: After charge, test the batteries' initial state. When the batteries are normal, discharge to 0V at 0.5C. Observe changes in
battery appearance.
4. Q: Can I have a sample order?
A: Yes, we accept sample order to test and check quality. Batteries can be made as require.
5. Q: Do you have MOQ limit?
A: Yes, we have MOQ limit for mass production, but it depends on battery model. Please contact us for details.
6. Q: How about the lead time?
A: Samples will takes 5-7 business days. Mass production will takes 25-30 days. It depends on quantity.
7. Q: How about shipping and delivery time?
A: Generally, battery will be shipped via Express, such as DHL, TNT, FedEx and UPS, delivery time is 3-5 business days. Or DDP
service, delivery time is 11-15 business days. Airline and sea shipping also available.
8. Q: What about after-sale service?
A: We will offer you 1 year guarantee. If there are any problems, please inform us, we will offer you positive solutions.
