LiFePO4 Battery Cell
>
|
| Place of Origin | China |
| Brand Name | XUWEN |
| Certification | CE |
| Model Number | IFR60280 3.2V 50Ah 100ah Lifepo4 Battery Cell |

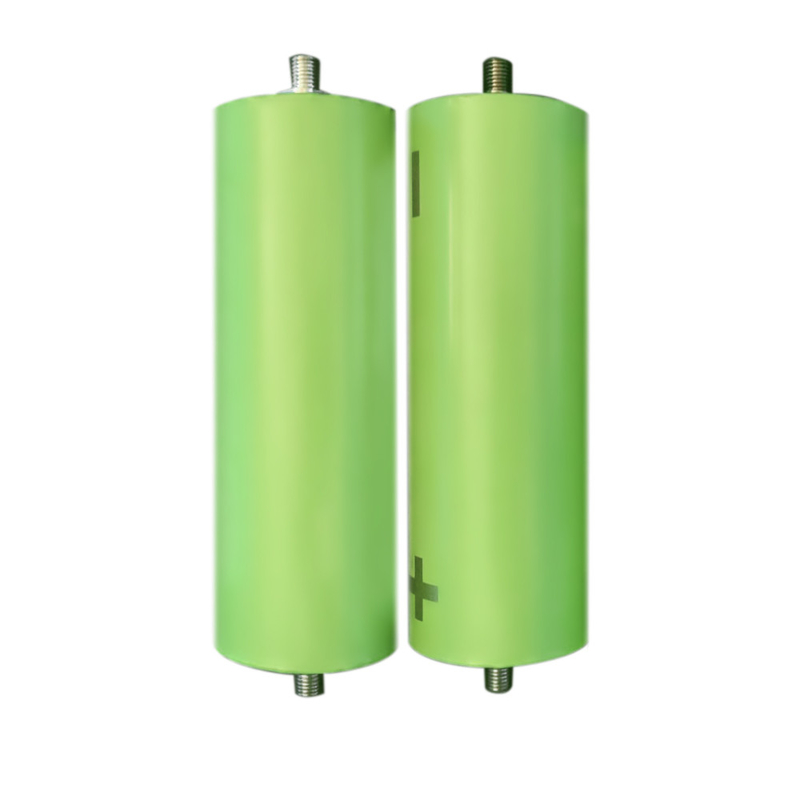

IFR60280 3.2V 50Ah 100ah Lifepo4 Battery Cell High Capacity Lifepo4 3.2v 100ah Polymer Prism
| Item |
Parameters |
Remark | |
| Rated Capacity | Typical | 50Ah |
standard discharge(0.2C) after standard charge |
| Minimum | 50Ah | ||
|
Alternating Internal Resistance |
≤40mΩ | ||
| Nominal Voltage | 3.2V | mean operation voltage | |
| Voltage at end of Discharge | 2.0V | discharge cut-off voltage | |
| Charging at end of Voltage | 3.65V | ||
| Standard Charge |
Constant Current 0.2C Constant Voltage 3.650V 0.02C cut-off |
charge time:Approx 6.0h | |
| Standard Discharge | Constant Current 0.2C end Voltage 2.0V | ||
| Fast Charge |
Constant Current 1C Constant Voltage 3.65V 0.02C5A cut-off |
charge time:Approx 2.5h | |
| Fast Discharge | Constant Current 1C end Voltage 2.0V | ||
| Cycle Characteristic |
2000times(100%DOD) 4000 times(80%DOD) 7000 times(50%DOD) |
the residual capacity is no less than 80% of rated capacity at 1C rate. |
|
|
Maximum Continuous Discharge Current |
2C | pulse discharge current: 5 C | |
| Operation Temperature Range |
Charge:0~55℃ Discharge:-20~60℃ |
60±25%R.H. bare battery | |
| Storage Temperature Range |
Less than 1 year:-20~25℃ Less than 3 months:-20~45℃ |
60±25%R.H. at the shipment | |
FAQ
1,Q: What's the main product in XUWEN?
A: Rechargeable battery: Li-ion, Lipo battery and power battery pack.
2,Q: What is overcharge?
A: After charge, tested the batteries' initial state and capacity. Charge to 10.0V at 3C current, then charge to 0.01C at CV mode.
Observe changes in battery appearance.
3,Q: What is over discharge?
A: After charge, test the batteries' initial state. When the batteries are normal, discharge to 0V at 0.5C. Observe changes in
battery appearance.
4. Q: Can I have a sample order?
A: Yes, we accept sample order to test and check quality. Batteries can be made as require.
5. Q: Do you have MOQ limit?
A: Yes, we have MOQ limit for mass production, but it depends on battery model. Please contact us for details.
6. Q: How about the lead time?
A: Samples will takes 5-7 business days. Mass production will takes 25-30 days. It depends on quantity.
7. Q: How about shipping and delivery time?
A: Generally, battery will be shipped via Express, such as DHL, TNT, FedEx and UPS, delivery time is 3-5 business days. Or DDP
service, delivery time is 11-15 business days. Airline and sea shipping also available.
8. Q: What about after-sale service?
A: We will offer you 1 year guarantee. If there are any problems, please inform us, we will offer you positive solutions.
