| Model Number | EBC-B20H 10A Battery Charge Discharge Tester Lithium Battery Tester |

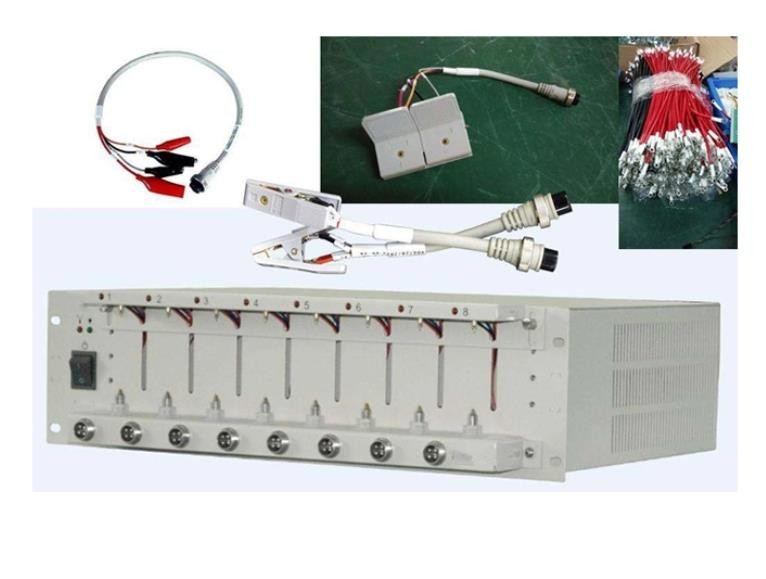

8 Channel 5V 10A Battery Charge Discharge Tester Lithium Battery Tester for Li-ion/Lead Acid Battery
Lithium Battery Tester Description:
Lithium Battery Tester Parameter:
| Product Name | 8 Channel battery capacity Tester for acid-lead /lithium battery/LFP battery /Li-po Battery |
| Input power supply | AC 100-240V |
| Voltage setting range: | 0-5V, stepper 0.01V |
| Discharge current: | 0.10-10.00A, stepper 0.01A |
| Detection Mode | DSC: CV discharge, Voltage lower than the cut-off voltage set then stop automatically |
| CHG: Charing through the external charger, Current lower the cut-off current set then stop automatically | |
| Discharge voltage detection | 0.10-5V, stepper 0.01V, |
| Cable connection | Voltage and current channels separated for high test accuracy |
| LCD display | voltage, current, time, capacity, etc |
| PC connection: | the tester can connect to a computer through a designated USB-TTL cable |
| for more functions, like graphs, calibration, firmware upgrades, and test circulation |
